Agrivert LTD, Howdon UK, Northumbrian Water

Year of manufacture 2011

Realisation of two 320 cbm sludge silo systems, connection of three centrifuges by conveying technology, as well as two external sludge intakes as pre-stage for a Cambi sludge treatment system.

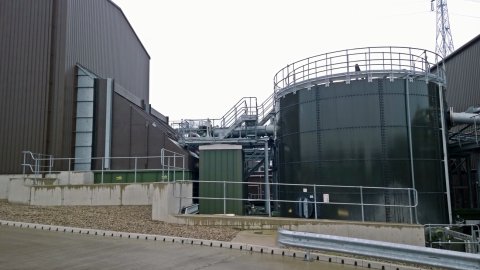

External sludge receiving hall, vertical worm conveyor for filling the silo, sludge filing silo, centrifuge building (l. to r.).

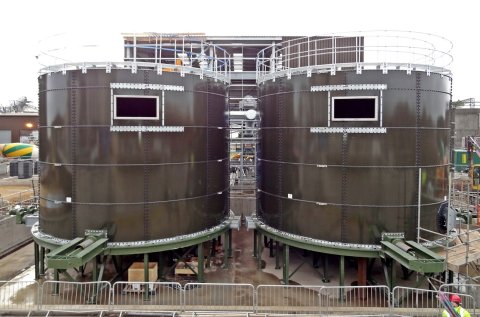

Construction phase: Ø 8.5 m platform sludge piling containers with sliding frame discharge

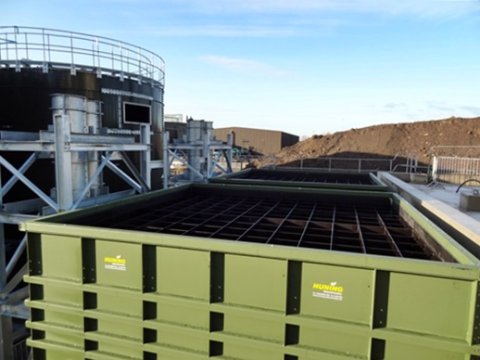

Construction phase: Receiving station with a discharge capacity of 50 cbm/h

Construction phase: Silo filling through SP 460 worm conveyor combination
